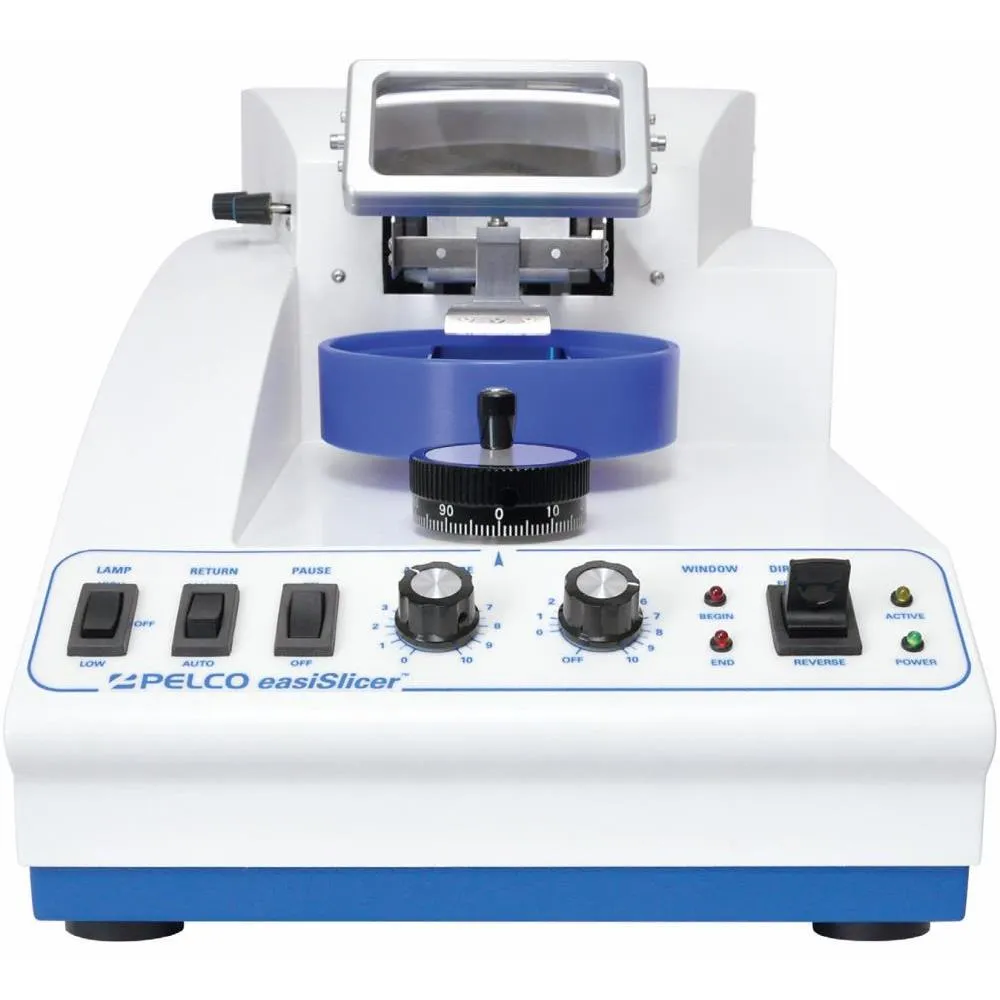

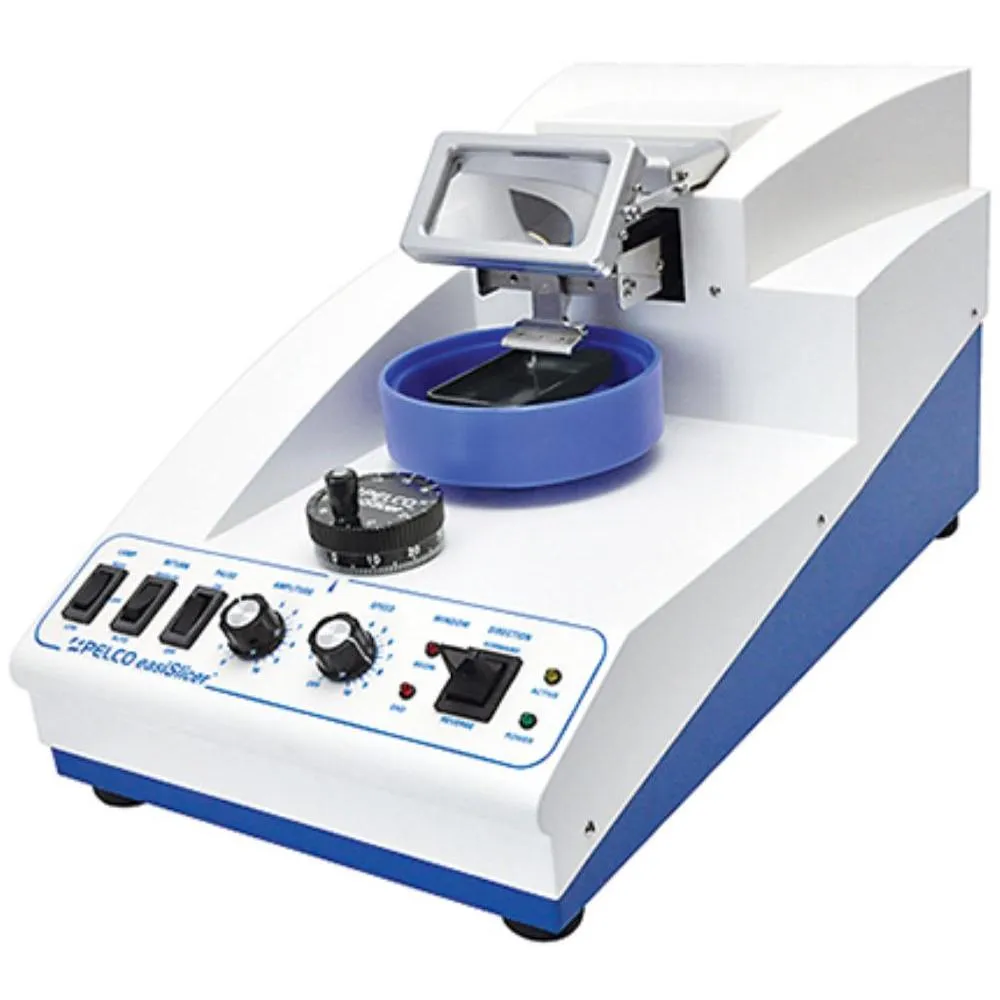

The PELCO easiSlicer introduces the new standard in vibratory slicing. It combines ease of operation, precise engineering and affordable pricing in a high quality instrument. All operational controls are located on the front of the instrument, clearly labelled and sealed against moisture. The specimen tray is held securely in the polypropylene bath by a set of strong magnets. The bath is attached from the side with a unique spring-loaded base that locks onto the PELCO easiSlicer by simple pressure.
Features:
- Precision design for accurate, high quality sections with minimal z-axis vibration
- Novel bath design utilises unique easy-locking base making it simple to clean
- Anodised specimen tray magnetically locks onto bath
- Optional magnetic base for tissue mounts available
- Cuts sections down to 20µm
- LED lights indicate active vibratory status and cutting window boundaries
- Revised Blade Holder utilising compression lever release and tightening, 15° cutting angle. Securely holds the thinnest Feather blades to a Sapphire Blade.
- Optional: Standard Removable Blade Holders available for Feather blades at 15°, 18° and 21° preset angles.
- Fully assembled, ready to use
- Affordable pricing
The PELCO easiSlicer comes equipped with tools and supplies to start cutting quality, consistent sections, right out of the box.
Specifications:
| Maximum Specimen Size | 40 x 40mm |
| Maximum Specimen Height | 15mm |
| Specimen Bath | Spring-loaded; polypropylene |
| Specimen Tray | Rectangular with magnet release. |
| Blade Type | Feather blades recommended |
| Blade Angle | 15°standard; 18°, 21°available |
| Sectioning Window | 10 - 40mm |
| Specimen Height Adjustment (Z-Axis) | 15mm total travel in 1um increments; tactile click stops at 5µm |
| Cutting Arm Speed (Y-Axis) | Forward: 0 - 2.0mm/sec Reverse: 5mm/sec Travel: 40mm total |
| Vibratory Amplitude (X-Axis) | 0 - 1.00mm total; continuously adjustable |
| Cutting Arm Frequency | 50Hz ±5 factory set |
| Magnification | 2X magnifier |
| Illumination | LED illumination; LOW/OFF/HIGH |
| Dimensions | 535 x 300 x 290mm |
| Weight | 16.8kg |
| Utility Requirements | 100 - 240V, 50/60 Hz, 345VA |
