Product Description

PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise's Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses! All PanaVise Products are covered by a Limited Lifetime Warranty! Introducing the Panavise 561 CRIMP PRESS RETRO-FIT KIT FOR A 502, Convert any PanaPress into a convenient Crimp Press to eliminate wrist fatigue! This retrofit kit was designed to assist in-house service departments, independent technicians, and medium-volume manufacturers. Requires purchase of the 502 (sold separately). Includes longer, 12-Inch lever for increased leverage ratio over standard 502 PanaPress, crimp die holders, all mounting hardware and two allen wrenches to ease installation. Accepts all industry standard crimp die sets. High leverage ratio helps prevent injuries to the wrist, hands, nerves and tendons. More effective than hand crimpers (completely eliminates the scissor effect). Limited Lifetime Warranty!

From the Manufacturer

The PanaVise 561 crimp press retrofit kit is an accessory kit that converts a Panavise 502 precision PanaPress (sold separately and required for use) into a convenient crimp press. The 561 crimp press retrofit kit contains a 12" lever for increased leverage ratio over a standard 502 PanaPress, top and bottom caps for the lever, crimp die holders, all neccessary mounting hardware, and two Allen wrenches to ease installation.

A crimp press is an example of insulation displacement connection (IDC) technology and is invaluable for independent repair technicians and in-house service departments in a variety of industry sectors, including computer networking, telephony, and electronics. It allows users to quickly and effectively crimp connectors onto wires and cables, eliminating the need to manually strip insulation, or to use handheld crimpers to attach connectors. The PanaVise 561 crimp press retrofit kit attaches to the 502 PanaPress and harnesses the evenly distributed downward pressure of its ram element. When combined with crimp die sets (sold separately) and the extra torc of the 12" lever arm included, users can quickly terminate the ends of cables and wires with the connectors they need for the application at hand. Used in work scenarios where the length of wire needed is a known, the 561 crimp press retrofit kit is designed for medium volume output, eliminating possible damage to wire and cable known as the "scissor effect" that can occur in crimpings done by hand. It also helps prevent injuries to wrist, hands, nerves and tendons that can result from the repeated use of handheld tools for crimping of wire and cables.

Insulation displacement connector (IDC) technology is designed around the application of internally bladed connectors to the ends of wires and cables that are then used to complete circuits used in low current applications. This efficient and time-saving method replaces earlier circuit connection methods that required stripping wires and soldering on connections. Connectors used in IDC applications are specific to wire types and gauges. When compressed, the internal blades in connectors pierce the insulation of the wire or the cable, making contact with the wire inside, maintaining conductivity through a combination of direct pressure and the vacuum that compression creates between the conductive material and the connector's blade.

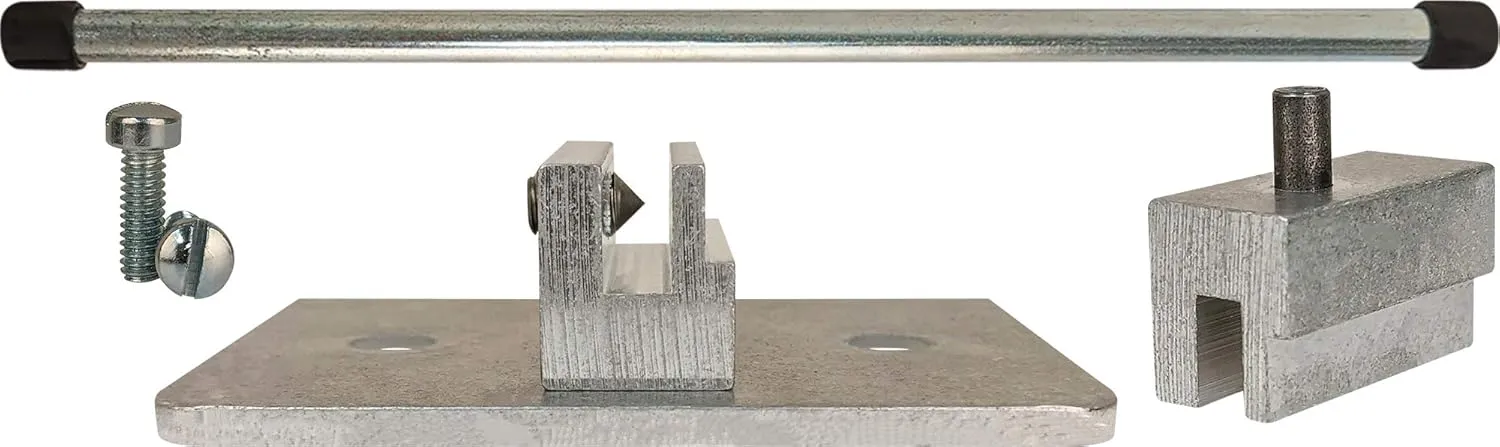

What's in the Box

• 12" lever for increased leverage ratio over standard 502 PanaPress
• Ram adapter (for applying even pressure across a connector)
• Crimp die holders
• All mounting hardware and two Allen wrenches

Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, electronics, CCTV camera mounts, and audio/video mounts, earning PanaVise the nickname the "the hold it anywhere you want it company."

• Product Dimensions ‏ : ‎ 12.4 x 5.9 x 2 inches; 1 Pounds
• Date First Available ‏ : ‎ May 27, 2007
• Manufacturer ‏ : ‎ Panavise
